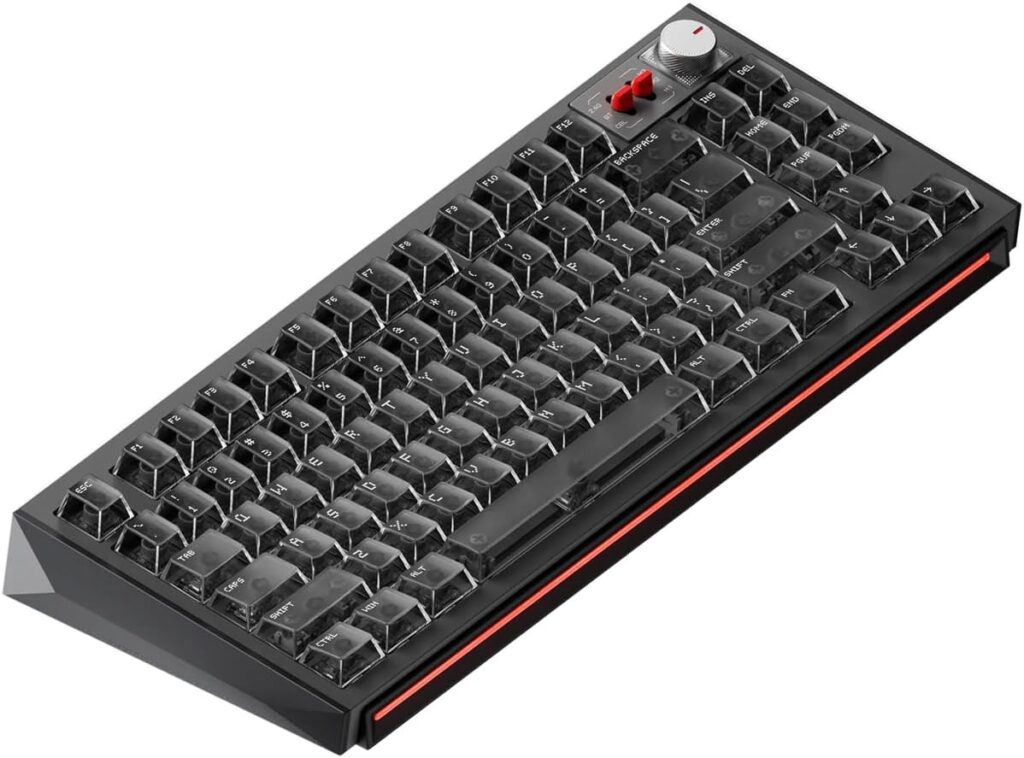

NuPhy WH80: Specs, Price, Pros & Cons
Up to 500 hours on a charge is not a figure you expect from a keyboard with magnetic switches, and the WH80 pairs it with an 8,000 mAh cell inside a tenkeyless case. That makes it a Hall-effect board you can unplug, carry to another room and use for weeks without looking for the cable.
The magnetic side covers the features competitive players buy for. Each key can fire at a depth you set and reset the moment it starts to rise, and both settings live in onboard profiles. Keys cannot act as joystick axes, since analog input is absent, and that single gap separates it from the magnetic boards aimed at racing and flight games.
A conventional enthusiast build surrounds the switches. The layout keeps the function row and the arrow cluster and drops the number pad. Gateron magnetic switches sit in hot-swap sockets under PBT keycaps, with sound dampening inside and per-key lighting on top, and it connects by cable, by receiver or over Bluetooth to three devices. The headline polling rate of 8,000 Hz applies over the cable. Wireless play keeps the tunable actuation and the fast reset but runs at a slower report rate, so the board is at its quickest tethered. The front edge is a touch taller than usual, a small point on a board this heavy, and no knob is fitted.
Its likely owner is a shooter player who games at one desk and works or travels with the same board elsewhere, and who charges peripherals as rarely as possible. Sim players who want proportional steering from the keyboard should keep looking. Anyone who never unplugs a keyboard is paying for a battery they will not use.
Category strengths
Where the NuPhy WH80 beats the median
- A much higher polling rate ?8,000 Hz vs 1,000 Hz (median)
- Has rapid trigger ?
- Has adjustable actuation ?
- Much longer battery life ?500 h vs 325 h (median)
- A lighter actuation force ?40 g vs 45 g (median)
Where the NuPhy WH80 trails the median
- A slightly higher front height ?21.7 mm vs 20.2 mm (median)
How this VS Score was computed
Score 77: each known spec is measured against the median of all keyboards (101 products), then weighted; 50 means level with that median. In classes of six or more, a value beyond the class’s 10th–90th percentile range counts as that limit, so one extreme product cannot set the scale. 61% of the scoreable weight could be used; unknown values, features not applicable to this class and proxies (battery capacity where a rated life exists) add or remove nothing.
| Specification | This product | Cohort median | Score weight | Points moved |
|---|---|---|---|---|
| Polling rate | 8,000 | 1,000 | 0.7 | +35.0 |
| Switch technology | Hall effect | Mechanical | 1 | +33.0 |
| Hot-swappable | Yes | 61% of the class have it | 0.6 | +30.0 |
| Rapid trigger | Yes | 25% of the class have it | 0.5 | +25.0 |
| Adjustable actuation | Yes | 24% of the class have it | 0.4 | +20.0 |
| Battery life | 500 | 325 | 0.6 | +16.2 |
| Sound dampening | Yes | 76% of the class have it | 0.3 | +15.0 |
| Actuation force | 40 | 45 | 0.4 | +2.4 |
| Front height | 21.7 | 20.2 | 0.2 | −0.6 |
| Connection | 3 | 3 | 0.8 | +0.0 |
| Bluetooth devices | 3 | 3 | 0.3 | +0.0 |
| Keycap material | PBT | PBT | 0.4 | +0.0 |
| Backlight | RGB | RGB | 0.3 | +0.0 |
Not scored: N-key rollover (standard for the class (85% have it)); Analog input (not applicable: only 14% of this class have it); Wired latency (unknown: not scored); Wireless latency (unknown: not scored); Battery capacity (capacity is a proxy; the rated battery life is scored instead); USB passthrough (not applicable: only 4% of this class have it); Programmable keys (standard for the class (99% have it)); Media controls (unknown: not scored); Rotary knob (unknown: not scored); Onboard profiles (standard for the class (89% have it)); Configuration software (standard for the class (95% have it)).
Editor’s note
The WH80 pairs Hall-effect switches with an unusually large battery, which is a combination almost nobody offers.
Magnetic boards are usually wired, because a wireless link works against the low latency they are sold on. NuPhy has gone the other way: tri-mode connection, a large battery, and full-speed polling when wired. That makes it the rare Hall-effect keyboard you can take somewhere.
The switch feature set needs reading carefully, though. Adjustable actuation and rapid trigger, the things that make magnetic switches worth having for shooters, are both present. Analog input is not. A magnetic switch reports its travel continuously, which is what those two features need. Exposing a key to the PC as a joystick axis is a separate firmware feature, and this board does not ship it. If you wanted proportional WASD for racing or flight sims, that is the line that rules it out.
The rest is well judged: a TKL layout, Gateron Jade Dragon-N switches at 40 g, PBT keycaps, hot-swap sockets, sound dampening, per-key RGB and onboard profiles. At 1 kg it stays where you put it.
Buy it if you want magnetic-switch response without being tethered, and rapid trigger is the feature you use. Buy a Wooting or the Keychron K2 HE if analog axes matter.
Specifications
Quality bars show where each figure sits between the lowest and highest of the 101 keyboards this VS Score is measured against.
Switches & typing
Performance
Layout & size
Connectivity
Build & sound
Features
Sources and verification
Where the specifications come from
- Official product pagenuphy.com
- Independent testingrtings.com
Verification
- First published
- Specifications last checked
- Sheet completeness
- 25 of 34 specifications verified; the rest show as Unknown and are never estimated or scored
- Page type
- Product specification page — Compiled from the manufacturer’s published specifications and the cited sources; this is not a hands-on test.
- Basis
- Research-based: specifications and editorial text were compiled from the documents listed here and the manufacturer’s published data. We have not tested this unit ourselves; where independent measurements are mentioned they belong to the linked publication.
Where to buy
Prices and availability may change. Check the retailer before buying. We may earn a commission on purchases.
Price history
Keyboards with similar specs to the NuPhy WH80
Ratings & reviews
No reviews yet. Be the first to share your experience.
The bottom line
The NuPhy WH80 earns a VS Score of 77, above the median of the 101 keyboards it is measured against (a score of 50 is level with that median).
- Who it’s for
- A shooter player who wants rapid trigger but also wants to unplug the board and take it elsewhere without charging it every few days.
- Who should look elsewhere
- Racing and flight-sim players who want keys to act as joystick axes should look elsewhere, because analog input is missing.
- The trade-off that matters
- Its fastest polling needs the cable. Wireless play keeps rapid trigger and tunable actuation, but the board is quickest tethered, which undercuts the reason some buyers want it.
- The main alternative
- Keychron K2 HE: wireless magnetic switches with analog input for sim players, at the cost of battery life.
The VS Score is calculated from the weighted specifications above, each measured against the median of comparable keyboards — a shortlisting guide, not a substitute for your own priorities. See how we score.
